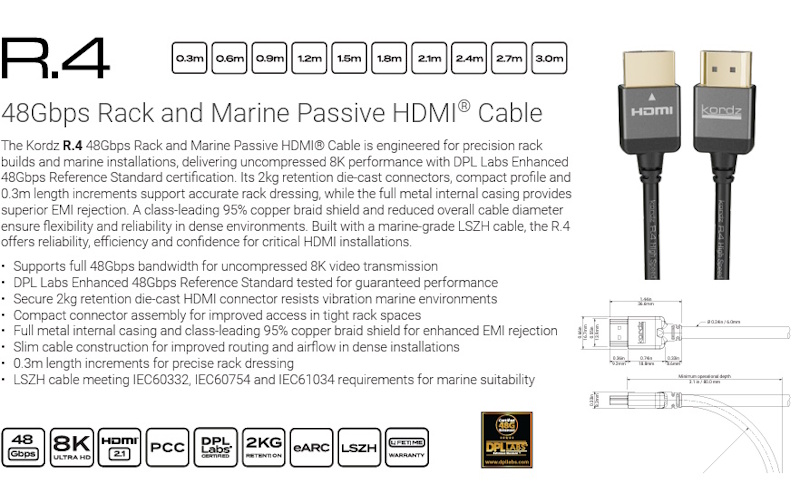

1. Supports full 48Gbps bandwidth for uncompressed 8K video transmission
2. DPL Labs Enhanced 48Gbps Reference Standard tested for guaranteed performance
3. Secure 2kg retention die-cast HDMI connector resists vibration marine environments
4. Compact connector assembly for improved access in tight rack spaces
5. Full metal internal casing and class-leading 95% copper braid shield for enhanced EMI rejection
6. Slim cable construction for improved routing and airflow in dense installations
7. 0.3m length increments for precise rack dressing
8. LSZH cable meeting IEC60332, IEC60754 and IEC61034 requirements for marine suitability
9. Individually performance tested
10. Backwards compatible with all HDMI versions for legacy device integration
11. Lifetime warranty

Performance 0.5m – 3.0m PASSIVE

HDMI Certification: Ultra High Speed with Ethernet
Supported Data Rate: 48Gbps (12Gbps per lane)
Other HDMI Features: Supports HDMI2.1 features

MECHANICAL

Cable Diameter: 0.3m – 2.1m: 34 AWG, 4.5mm/0.18”ø | 2.4m – 3.0m: 30 AWG, 6.0mm/0.24” ø
Mounting Length: 0.3m – 2.1m: 34 AWG, 49.9mm/1.96in | 2.4m – 3.0m: 30 AWG, 57.4mm/2.26in
Cable Bend Radius: 0.3m – 2.1m: 34 AWG, 36mm/1.42in | 2.4m – 3.0m: 30 AWG, 48mm/1.89in

CONSTRUCTION

Primary Conductors: 0.3m-2.1m: Solid 34AWG OFC | 2.4m-3.0m: Solid 30AWG OFC
Insulation on TMDS: Polyethylene
Insulation on 4C + HEAC Pairs: Polyethylene
Shielding on TMDS Pairs: AL/Mylar, 125% Coverage
Shielding Overall: AL/Mylar, 125% Coverage + Bare copper braid 16/12/0.08 ± 0.008mm, 95% coverage
Cable Jacket: IEC60332-1 LSZH Composite

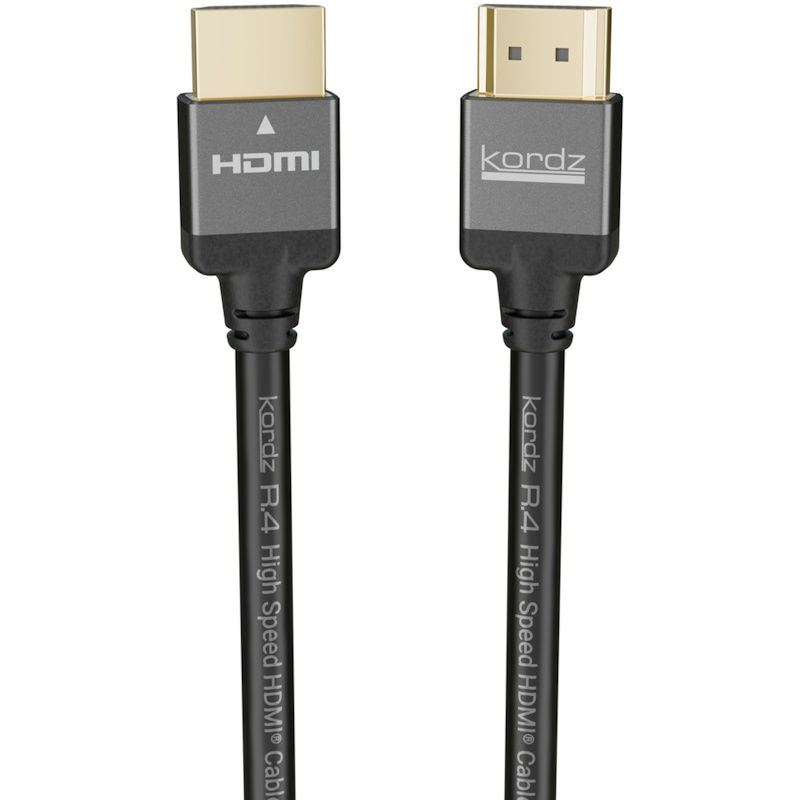

HDMI Connector Shell: Anti-fatigue die-cast Zn Alloy, 1μ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: High Frequency Soldering
HDMI Backshell: Aluminum outer shell, TPE boot & strain relief
Connector Retention Force: 20N (approx. 2kg / 4.4lbs) +10/-5%
