                    [post_content] => Since its inception, USB has evolved rapidly, delivering faster speeds and more capabilities with each new version. This progress, however, has created confusion for AV professionals. The version numbers and marketing names have become inconsistent, leading to a situation where not all USB cables and ports behave the same.

For systems integrators, this creates a ‘capability soup’ that makes selecting the right hardware and cables unnecessarily complex and fraught. Consequently, it can result in unreliable installations, unexpected performance limitations and troubleshooting delays.

A new article from our partners at Kordz helps integrators cut through that confusion by explaining how USB versions, Thunderbolt, DisplayPort Alt Mode and tunnelling really work. With a clear understanding of these technologies, you can select the right cables and hardware for reliable, high-performance AV installations. The full article is available at www.kordz.com.



The Background: USB's History of Rapid Evolution

When USB was introduced in the 1990s, it simplified device connectivity by replacing serial and parallel ports with a single universal connection. USB 1.0 supported 12 Mbps, followed by USB 2.0 at 480 Mbps, plenty for peripherals like printers, keyboards and basic webcams of that age. Speeds increased rapidly with USB 3.0 in 2008 (5 Gbps) but naming conventions soon became inconsistent: Rather than adding new versions, older ones were renamed. Even today, products may still be marketed as USB 3.0 despite that naming convention having been updated years ago. For AV professionals, this is understandably confusing, the shifting terminology often requiring detective work just to understand what a USB connection actually supports. In parallel to USB’s evolution, Intel and Apple developed Thunderbolt to combine PCIe data transfer and DisplayPort video over a single cable. Early versions used Mini DisplayPort connectors. By Thunderbolt 3 in 2015, the protocol had moved to USB-C, offering 40 Gbps data and video simultaneously. In 2019, Intel contributed Thunderbolt 3 to the USB Implementers Forum, leading to USB4. USB4 adopted Thunderbolt’s features, including PCIe tunnelling and dynamic bandwidth allocation. Today, Thunderbolt 3 and 4 devices are fully compatible with USB4, making USB-C a truly versatile connector for data, video, PCIe devices and power delivery.

Understanding USB Capabilities

The simplest way to understand USB capabilities is by speed: 5, 10, 20, 40, and 80 Gbps. Each tier has variations and nuances but speed remains the clearest indicator of performance.     What is a Lane in USB? A lane is a dedicated high-speed data pathway within a USB connection. USB-C connectors contain four lanes: two for transmitting and two for receiving data. Each lane consists of a twisted wire pair plus a drain, identified as TX1, TX2, RX1 and RX2 in the connector pinout.
In data-only connections, USB 3.2 Gen 1 and Gen 2 each use one lane in each direction. USB 3.2 Gen 2×2 doubles throughput to 20 Gbps by using two lanes each way. Devices and cables that support USB4 can use all four lanes dynamically, enabling up to 40 Gbps bidirectional bandwidth. USB 2.0 signals run separately on the D+ and D– pins, independent of the high-speed lanes.
This setup explains why USB-C docks can handle multiple tasks at once. Peripherals like webcams often use USB 2.0 lanes, while high-speed data and DisplayPort video signals occupy the high speed lanes. Running DisplayPort Alt Mode alongside USB data on these lanes is where bandwidth management becomes critical.   What is DisplayPort Alt Mode? DisplayPort Alt Mode enables a USB-C connection to transmit native DisplayPort video signals. Some high-speed lanes are reassigned to carry video instead of data, allowing a single USB-C cable to deliver both video and USB 3.x data (at half speed), also known as DisplayPort Alt Mode 2-lane mode, or dedicate high speed lanes entirely to video and allowing only USB2.0 data transmission, also known as DisplayPort Alt Mode 4 lane mode. For example, a USB-C link using DP Alt Mode can send a 4K video signal while still supporting peripheral connections. However, using multiple 4K monitors and high speed data together can exceed bandwidth limits, causing degraded performance or blank screens. To deliver reliable video output, both the host device and connected hardware must support the same DP Alt Mode and be connected by a cable that supports these functions.   What is USB4 Tunnelling? Signal tunnelling, used in USB4 and Thunderbolt, dynamically packetizes high speed signals such as USB, DisplayPort and PCIe to share bandwidth efficiently. Unlike earlier USB versions that fixed lanes for data or video, tunnelling allows the connection to prioritize video when needed and data when possible. For example, when outputting 4K video while transferring small amounts of data, tunnelling automatically allocates most bandwidth to video without leaving unused capacity idle.

What this Means: Practical Advice for AV Integrators Deploying USB

Understanding USB specifications is only part of the challenge. In real-world installations, mixing data rates, DisplayPort capabilities and Power Delivery support can create a dozen potential combinations, not all of which are common or clearly labelled. To avoid costly mistakes and deliver dependable systems, we recommend you: 1. Check Port and Cable Capabilities. Never rely on connector shape or version names alone. Verify data speed, video support and power delivery for every port and cable in the chain. 2. Match Bandwidth to Application. Higher resolutions, multiple displays and fast storage require higher data rates. A cable rated for 10 Gbps may not handle two 4K displays or large video transfers without performance loss. 3. Understand Shared Bandwidth. On USB connections that carry both data and video, available bandwidth is divided. USB4 and Thunderbolt improve efficiency through PCIe tunnelling, but bandwidth limits will still apply to what is feasibly possible. 4. Choose Professional Grade, Clearly Labelled Products. Generic cables often lack full feature support or clear labelling. Professional grade USB-C solutions, like Kordz, are engineered for professional systems integration, delivering fully compliant, tested data, video and power performance and reducing troubleshooting time. Also look for USB-IF official certification marks, such as the ones carried by Kordz PRO Passive USB-C Cables.   USB-C is a powerful solution for today’s AV systems, capable of delivering data, video, and power through a single connection. With a clear understanding of its specifications and the right professional grade cables, integrators can deploy USB-C seamlessly and build installations that perform reliably. Read this article in its entirety on www.kordz.com or learn more about Kordz USB solutions on the Future Ready Solutions website. [post_title] => USB Demystified: What AV Integrators Need to Know About USB [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => usb-demystified-what-av-integrators-need-to-know-about-usb [to_ping] => [pinged] => [post_modified] => 2025-08-07 07:27:43 [post_modified_gmt] => 2025-08-07 11:27:43 [post_content_filtered] => [post_parent] => 0 [guid] => https://staging.futurereadysolutions.com/?p=186633 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [1] => WP_Post Object ( [ID] => 184159 [post_author] => 1 [post_date] => 2025-07-13 08:29:46 [post_date_gmt] => 2025-07-13 12:29:46 [post_content] => As we've discussed in previous articles, lithium iron phosphate (LiFePO4) batteries are rapidly gaining popularity with UPS manufacturers due to their long life, low maintenance and ecological benefits. Not to be confused with traditional lithium-ion which consistently makes the news due to overheating and fire risk, lithium iron phosphate technology is safe and stable even in warm conditions. Why are lithium iron phosphate batteries gaining traction? As stated above, they're thermally safe; however, they also have a 3x greater average lifespan (8 – 10 years) than traditional lead acid batteries with very little maintenance required. Additionally, they are non-toxic and don’t contain cobalt, a metal with environmental and ethical issues. The main downside to lithium iron phosphate is its upfront cost, and UPSs built with LiFePO4 batteries tend to have a higher initial cost but a lower overall cost considering their long life, low maintenance need and highly efficient performance. The good news is as more manufacturers embrace lithium iron phosphate technology the cost of UPS systems continues to decrease compared to those with other battery technologies. The Xtreme Power J90 is an excellent example, as we'll see below. This article explores five popular UPS solutions that leverage lithium iron phosphate technology. Additional information is available on the Future Ready Solutions website.

J60: The World's Smallest UPS

The Xtreme Power J60 combines advanced lithium iron phosphate UPS protection with powerful surge suppression technology. Its ultra-slim form factor (just 1.25”), built-in wall mounting brackets, and easy access receptacles make the J60 ideal for installation behind thin display screens, racks and other tight and low-profile spaces. Simply put: the J60 will easily fit where a conventional UPS will not. Key features:

J60C: Ultra-Slim Footprint in a 1RU Rack Space

The Xtreme Power J60C migrates the benefits of the ultra-slim J60 to a 1RU rack-mount footprint. It's ideal for short depth racks and applications where extra space for cable management is required. The J60C offers remote UPS management, control and environmental monitoring with optional Web/SNMP card, and a built-in LCD display adds local UPS status and control. Key features:

P91: Advanced Online Double Conversion

The Xtreme Power P91 is designed for high density critical loads, delivering industry-leading reliability, efficiency and flexibility. The P91 provides constant and enhanced power protection against normal mode noise, harmonic distortion, switching transients and frequency variations. Advanced features include online or ECO modes for up to 99% efficiency, programmable output voltage and frequencies, and hot swappable batteries. Key features:

J90: Affordable Online Double Conversion in a 1RU Rack Space

The Xtreme Power J90 is a true online double conversion UPS in a compact 1RU rack space. Drawing on the increased popularity of lithium iron phosphate technology, it also features a price that rivals traditional lithium ion and lead acid technology. The J90 delivers continuous, high-quality AC power with protection against normal mode noise, harmonic distortion, switching transients and frequency variations. Additional features include switched receptacles allowing the user to remotely power up or power down individual UPS outlets and power cycle unresponsive audio-visual and network equipment. Key features:

Li90: Three-Phase Online Double Conversion for the Whole Building

The Xtreme Power Li90 is a compact, high-performance 208V three-phase online UPS that delivers up to three times the life of traditional UPS battery systems. Its narrow footprint makes it ideal for tight installations in residential and commercial AV, security, industrial, edge and IT environments. Designed for demanding applications, the Li90 provides clean, reliable power in high-temperature conditions up to 122°F. Hot-swappable battery modules allow maintenance without downtime, and high overload capacity provides 110% power coverage for up to 60 minutes including protection from surges and startup loads. Key features:    Additional information on these UPS models, including pricing and availability, is available from FutureReadySolutions.com or by contacting your Future Ready Solutions representative.   [post_title] => Upgrade to Lithium Iron Phosphate: Five Popular UPS Systems [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => upgrade-to-lithium-iron-phosphate-four-popular-upss [to_ping] => [pinged] => [post_modified] => 2025-07-13 08:59:15 [post_modified_gmt] => 2025-07-13 12:59:15 [post_content_filtered] => [post_parent] => 0 [guid] => https://staging.futurereadysolutions.com/?p=184159 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [2] => WP_Post Object ( [ID] => 180700 [post_author] => 1 [post_date] => 2025-06-08 12:41:07 [post_date_gmt] => 2025-06-08 16:41:07 [post_content] => As demand for faster, more reliable data transmission continues to rise, fiber optic networking has become the gold standard for high-speed internet and IP-based control. But deploying fiber requires more than just the cables — a range of electronics are essential to translate, switch, and transmit data across the network. This article explores the electronics commonly used in residential and commercial fiber-based networks, as well as the connectivity components required to integrate them. Future Ready Solutions offers the solutions described in this article. Product information is available from the links below:

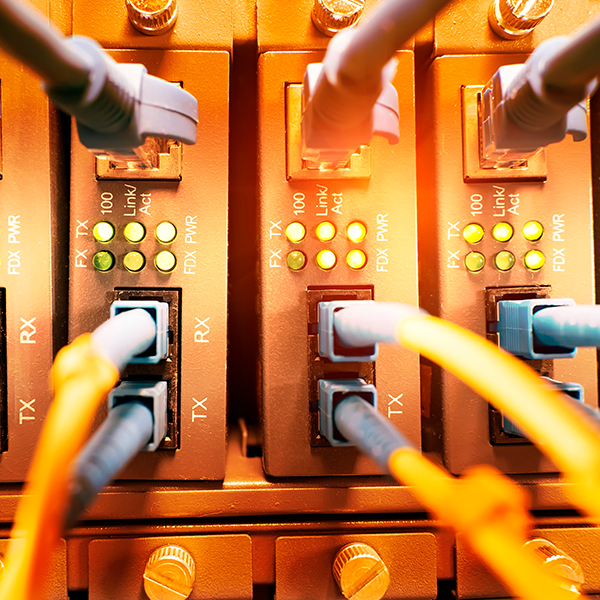

Media Converters: Bridging Fiber and Copper

Media converters are devices that convert signals between different media types — most commonly between fiber optic and twisted pair. They allow existing copper-based networks to integrate with fiber cabling without the need to replace the entire infrastructure. Media converters are essential because network electronics still commonly feature RJ45 ports and they're bound by the limitations of copper-based networking, such as 100m / 330ft maximum transmission distances, 10G bandwidth, and susceptibility to lightning, static electricity, power surges, and RF and EM interference. Fiber does not have these limitations and media converters effectively bridge the copper-to-fiber gap. Depending on the model, media converters support up to 10G network traffic and even inject PoE+ power for connected electronics.

Media Converters: Bridging Other Signal Formats

Media converters are also used to adapt other signal formats to fiber, including serial RS232, RS485, RS422, and even HDMI, USB, and IR. Fiber is an ideal medium for the high-bandwidth needs of HDMI and USB, and we're seeing increased products from LightSpeed Technologies and AVPro Edge that address long-distance signal-over-fiber extension. Media converters can even be used to adapt one type of fiber to a different type of fiber. The ROBOfiber LFC-1000-SS features two transceiver ports that convert multimode fiber to single mode fiber and vice versa.

Network Switches: Managing Fiber Connections

Network switches are central hubs that direct data traffic between devices on a local area network (LAN). Fiber-capable switches include ports that accept fiber transceivers (SFP/SFP+/QSFP/etc.), allowing them to handle fiber links alongside traditional copper RJ45 ports. Fiber-capable network switches are increasingly used in residential and commercial applications for high-speed networking, building-to-building transmission, and AV over IP. ROBOfiber offers a variety of hardened fiber-capable switches designed for indoor and outdoor integrations (provided a suitable weather-rated enclosure is used).

Transceiver Modules: Enabling Fiber Communication

Transceiver modules (commonly known as SFP modules) are small, hot-swappable devices that plug into network equipment such as switches and media converters. They convert electrical signals to optical signals and vice versa for transmission over fiber optic cables. Transceiver modules are typically specific to a type of fiber (such as single mode or multimode) and a network speed (such as SFP+ or QSFP), and manufactures commonly leverage empty transceiver ports on electronics to allow a greater range of compatibility in the field. Most transceivers require a duplex (two strand) fiber connection; however, BiDi transceivers only require a single fiber strand for bi-directional network communication.

Fiber optic networking requires more than just high-quality cables — it depends on a range of specialized electronics to function efficiently. Media converters provide flexibility and backward compatibility. Network switches serve as the nerve centers for directing traffic. Transceiver modules enable fast, precise communication over fiber lines while offering the flexibility to adapt electronics in-the-field.

Understanding how each of these components fits into a fiber-based network helps ensure reliable, high-speed connections for today’s bandwidth-intensive applications.

All of these solutions are available on the Future Ready Solutions website or by contacting us at info@futurereadysolutions.com.

  [post_title] => Networking over Fiber [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => networking-over-fiber [to_ping] => [pinged] => [post_modified] => 2025-06-08 12:41:07 [post_modified_gmt] => 2025-06-08 16:41:07 [post_content_filtered] => [post_parent] => 0 [guid] => https://staging.futurereadysolutions.com/?p=180700 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [3] => WP_Post Object ( [ID] => 180877 [post_author] => 1 [post_date] => 2025-06-08 10:05:44 [post_date_gmt] => 2025-06-08 14:05:44 [post_content] => Integrations rarely stay indoors. Outdoor living spaces demand AV and internet, security cameras extend to the edges of properties, automated gates require connectivity, and remote buildings rely on network access. All of these connections drive the need for outdoor equipment enclosures. Future Ready Solutions' partner Altelix designs and manufactures a wide variety of weatherproof equipment enclosures in the United States based on common configurations and custom project requirements. They specialize in protecting electronics, cable, and connections from harsh weather and other environmental factors. However, as a full line manufacturer, Altelix's options are wide and choosing the proper enclosure can be daunting. We're often asked what's best construction material: fiberglass, polycarbonate, or steel? How do I handle power? What about extreme temperature fluctuations and security? This article addresses those questions and more. Popular Altelix solutions are available on the brand page and Future Ready Solutions offers their complete line, including custom built products and turnkey engineered kits. Please contact info@futurereadysolutions.com for assistance selecting an off-the-shelf or engineering a custom-built enclosure.

Environment

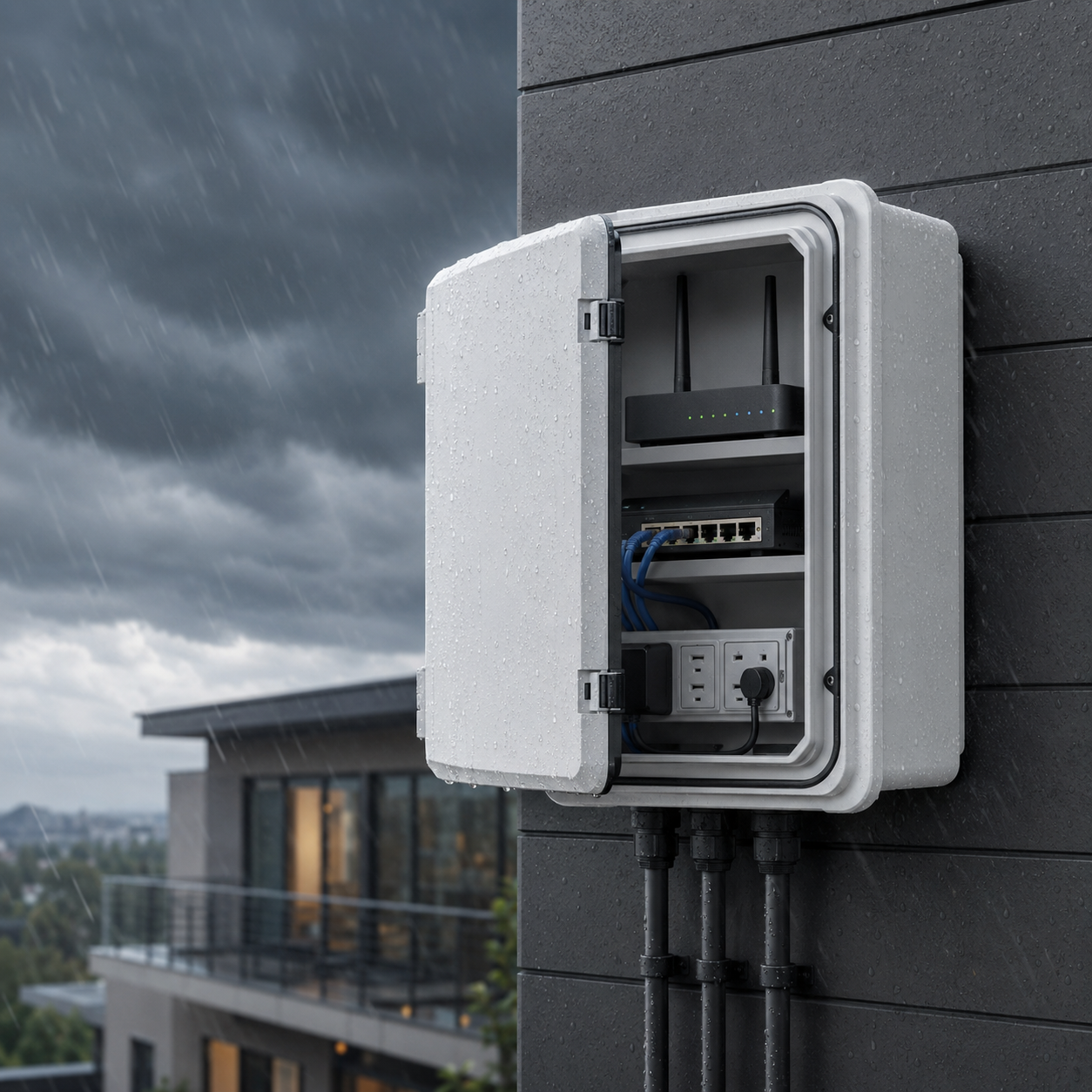

The first step in choosing an outdoor enclosure is understanding the environment in which it will be installed. Environmental protection, formally qualified as a NEMA or IP rating, determines the level of protection from water ingress, dust and pollen ingress, and corrosion from UV, salt, and other natural and chemical material exposure. Most outdoor enclosures carry a NEMA and/or IP rating, and we've summarized the levels of protection below.
NEMA Rating Protection Against Typical Use
NEMA 1 Basic indoor protection against dust, light contact Indoor equipment rooms
NEMA 3 Rain, snow, sleet, and windblown dust Basic outdoor use (not waterproof)
NEMA 3R Like NEMA 3, but no dust protection Outdoor use (meter boxes, AC disconnects)
NEMA 3S 3R + operable in ice formation Harsh weather with freezing risk
NEMA 4 Watertight (hose-directed water), dust Outdoor enclosures, washdown areas
NEMA 4X 4 + corrosion resistance Marine, chemical, food processing
NEMA 6 Temporary submersion in water Below-grade or flood-prone areas
NEMA 6P Prolonged submersion in water Submersible pumps, wet wells
NEMA 12 Indoor dust, dripping water, oil Factories, dirty industrial settings
NEMA 13 Like 12 + more protection against oil/coolants Machine tool enclosures

IP Rating Protection Against Typical Use
IP20 Finger-safe, no water protection Indoor office equipment
IP54 Dust protected, splash resistant Light outdoor use, sheltered locations
IP65 Dust-tight, protected from low-pressure jets Outdoor enclosures, lighting
IP66 Dust-tight, protected from strong jets Harsh outdoor or industrial environments
IP67 Dust-tight, immersion up to 1 meter Outdoor, temporary flooding possible
IP68 Dust-tight, continuous immersion Submersible equipment
IP69K Dust-tight, high-pressure washdown Food processing, sanitation environments


Size and Mounting Options

Next, it's important to understand where the enclosure will be secured and what equipment it will protect. Altelix provides two size specifications for every enclosure: an outer dimension which provides the overall enclosure size and its footprint for mounting, and an inner dimension which provides the interior space allowed for securing equipment. In most applications, the interior space must also accommodate cable routing, connectivity hardware, mounting hardware, and airflow and it's critical to choose an enclosure with an inner dimension larger than the electronics it will secure -- especially if thermal management or future expansion is required. Enclosures also accommodate a variety of mounting types, the most common being wall mount, pole mount, and pad mount. Mounting type can influence an enclosure's size and overall construction.

Material Construction

Outdoor enclosures are available in a variety of construction materials, the most common being fiberglass, polycarbonate, powder-coated steel, and stainless steel. Fiberglass enclosures are lightweight, durable, and offer excellent protection against UV and corrosion. Additionally, they are non-conductive and safe around high-voltage power lines and equipment. This protection does come with a price, and fiberglass enclosures tend to be more expensive than polycarbonate constructions. Polycarbonate enclosures are manufactured from an extremely tough thermoplastic polymer that balances lightweight construction and strength with an overall low cost. However, polycarbonate offers weaker protection against UV and other environmental factors and it can yellow over time. Steel enclosures are the strongest constructions commonly available. Stainless steel is highly corrosion-resistant, whereas powder-coated steel can rust over time. While steel does offer the most secure protection for internal components, it is heavier, harder to mount, and typically more expensive than fiberglass and polycarbonate constructions.
Feature Fiberglass Polycarbonate Steel (Powder-Coated & Stainless)
Corrosion Resistance Excellent Moderate Poor (powder), Excellent (stainless)
Impact Resistance Good (can be brittle under impact) Excellent Excellent
Weight Light Light Heavy
UV Resistance Excellent Moderate Excellent
Modifiability Fair Easy Difficult
Cost Moderate to High Low to Moderate High (especially stainless)
Best Use Wet and corrosive environments Lightweight outdoor environments Industrial and high-security environments


Ventilation and Thermal Management

Enclosures that house active electronics will often generate heat and, depending on the environment, built-in vents, fans, louvers, and/or heat exchangers may be required -- especially if the mounting location is exposed to direct sun. Altelix manufacturers enclosures with both passive (vents and louvers) and active (fans and heat exchangers) thermal management. Note that power is required for active requirements. Before selecting an enclosure, it's important to understand the internal electronics' temperature range and compare that to intended enclosure environment.

Power

Power is also a consideration for both thermal management (as described above) and the electronics installed within the enclosure. Altelix offers enclosures pre-wired with AC and DC power distribution that ship ready for installation and hook-up. Note that a licensed electrician may be required depending on the installation parameters and local codes.

Cable Entry and Management

Outdoor enclosures require secure access for cable entry and management, and Altelix enclosures are available with pre-drilled cable glands and knockouts. Depending on the NEMA and/or IP rating, factory-supplied grommets and waterproof fittings are required to protect against rain, meltwater, and insect intrusion. For custom applications, Altelix will modify enclosures at the factory or installers can drill and outfit enclosures in the field; however, custom modifications are typically done to fiberglass and polycarbonate enclosures as described above.

Security and Access Control

Finally, enclosures are available with a variety of locking mechanisms, including keyed locks, padlock rings, and tamper-resistant latches. Doors are available in single and dual constructions and, depending on the enclosure, they can be fixed swing-mount or removable. For public and security sensitive applications, it's best to choose an enclosure with tamper-resistant and access controlled features.   Future Ready Solutions offers the complete line of Altelix enclosures and popular solutions are available on the brand page. Please contact the Future Ready Solutions engineering team at info@futurereadysolutions.com for design or purchasing assistance.   [post_title] => Choosing an Outdoor Equipment Enclosure [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => choosing-an-outdoor-equipment-enclosure [to_ping] => [pinged] => [post_modified] => 2025-06-09 10:53:54 [post_modified_gmt] => 2025-06-09 14:53:54 [post_content_filtered] => [post_parent] => 0 [guid] => https://staging.futurereadysolutions.com/?p=180877 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [4] => WP_Post Object ( [ID] => 180714 [post_author] => 1 [post_date] => 2025-06-07 08:56:54 [post_date_gmt] => 2025-06-07 12:56:54 [post_content] => Fiber optic enclosures are a necessary component of any optical-based installation. They protect fiber cables and connections, transition between different cable types, neatly organize incoming and outgoing cables, maintain minimum bend radiuses, provide consolidated points of system maintenance, and allow for future expansion and system scaling. Ultimately, leveraging a fiber enclosure improves signal integrity and ensures the fiber-based network operates properly over the life of the system. Many enterprise end-users, consultants, and architects require a fiber enclosure for the reasons listed above. This articles explores common fiber enclosure types, including those designed for indoor, outdoor, wall mount, and rack mount applications. A wide selection of enclosures is available on the Future Ready Solutions website.

Understanding Your Options

The first step in choosing a fiber enclosure is understanding the constraints and needs of your installation.
  1. Environment. Will the enclosure be located indoors or outdoors? Will the environment be temperature and humidity controlled? Will there be exposure to water, blowing dust, and other particulates?
  2. Mounting Style. Will the enclosure be rack mounted, wall mounted, or installed in a recessed wall-box or trim-ring?
  3. Size. How many connections must the enclosure manage? Do we need room for excess cable for a service loop or future expansion?
  4. Scalability. Could the system expand in the future? Do we have room for additional cables and connections if needed?
Answering the above questions will ensure the proper enclosure is selected for long-term system stability and ease-of-maintenance.

Wall Mount Fiber Enclosures

Wall mounted fiber enclosures are extremely common in both indoor and outdoor installations. Available in both plastic and metal constructions, wall mount enclosures provide compact, self-contained points of management for fiber cables and connections. In many applications, a centrally located main distribution frame (MDF) feeds multiple wall mounted remote intermediate distribution frames (IDFs) creating a hub-and-spoke type fiber installation. Wall mounted enclosures are ideal in IDF locations because they tend to be smaller and more easily secured in a variety of environments. Wall mount enclosures include basic wallplates that install over standard wall-boxes and low-voltage trim rings, plastic boxes that secure against the weather and are perfect for outdoor locations, and metal boxes that provide extra protection and multiple panel slots for future expansion. LightSpeed Technologies offers several extremely unique wall mount fiber enclosures designed specifically for residential integrations. Additionally, metal fiber enclosures from Cleerline accommodate up to eight configurable LGX adapter plates that allow installations to be customized across multiple fiber optic cable and connection types. A convenient LGX bracket mounts individual plates in tight locations and inside general purpose boxes, such as those from Altelix. Many applications benefit from Altelix's universal approach to fiberglass, polycarbonate, and steel enclosures because they are agnostic across cable types and even provide power for integrated electronics such as media converters, extenders, wireless access points, and network switches.

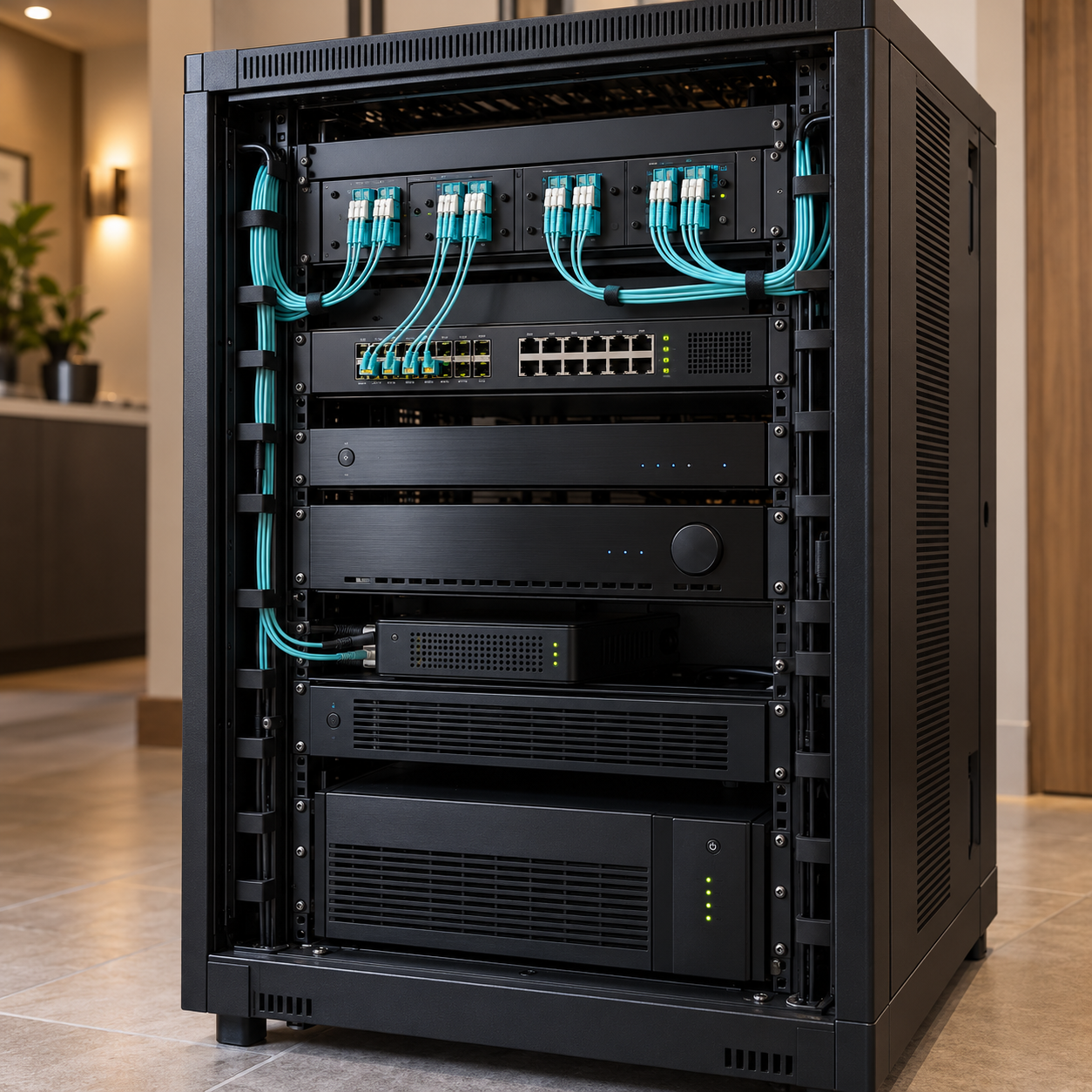

Rack Mount Fiber Enclosures

Rack mounted fiber enclosures typically provide more capacity than their wall mounted counterparts and are designed to be installed in standard 19" and 23" audio-visual and datacom equipment racks. Due to their larger footprint, rack mount enclosures allow extra cable to be coiled for future maintenance and system expansion, and built-in features such as sliding trays and front panel doors provide fast and secure installations. Cleerline manufactures a variety of rack mount enclosures that accommodate up to 12 configurable LGX adapter plates. They include flush mount and recessed mounting ears, multiple points of entry, and removable panels to support a wide-variety of cable paths and rack configurations. As discussed above, rack mount enclosures are often used as the main distribution frame (MDF) whereas wall mount enclosures support the in-the-field intermediary distribution frames (IDFs).

Choosing an Enclosure: Quick References

Future Ready Solutions provides a variety of guides and selectors to help choose the perfect fiber optic enclosures. We've listed quick reference links below: Additional information, including system design support, is available online at FutureReadySolutions.com or by emailing info@futurereadysolutions.com.     [post_title] => Choosing a Fiber Optic Enclosure [post_excerpt] => [post_status] => publish [comment_status] => open [ping_status] => open [post_password] => [post_name] => choosing-a-fiber-optic-enclosure [to_ping] => [pinged] => [post_modified] => 2025-06-08 06:55:31 [post_modified_gmt] => 2025-06-08 10:55:31 [post_content_filtered] => [post_parent] => 0 [guid] => https://staging.futurereadysolutions.com/?p=180714 [menu_order] => 0 [post_type] => post [post_mime_type] => [comment_count] => 0 [filter] => raw ) [5] => WP_Post Object ( [ID] => 180546 [post_author] => 1 [post_date] => 2025-06-05 07:20:09 [post_date_gmt] => 2025-06-05 11:20:09 [post_content] => HDMI technology has long been the backbone of high-resolution video and audio transmission in both residential and commercial AV applications. With every new iteration, HDMI has pushed the limits of bandwidth, resolution and performance. However, HDMI 2.2 remains largely speculative at this point. While its exact specifications are yet to be confirmed, we do know that it will require new electronics and cabling, which we expect to be certified under the Ultra96 standard and support a native bandwidth of 96Gbps. A new article from our partners at Kordz explores what HDMI 2.2 means for the AV industry. Below is the summary information. The full article is available at www.kordz.com.

How HDMI 2.2 Will Influence AV Experiences

Beyond its raw bandwidth increase, HDMI 2.2 is expected to drive transformative changes across various industry sectors: It’s very exciting and also, from an engineering and manufacturing perspective, there’s a lot of work ahead of us to bring this potential into the real world of AV system.

When Will HDMI 2.2 Become a Reality?

Ultra96 certification is expected to validate HDMI 2.2’s 96Gbps bandwidth by 2026, and so while the industry works to define the new standard, currently no products exist that support HDMI 2.2. Despite widespread speculation about the availability of compatible content and equipment, HDMI 2.2 is inevitable. Other connectivity technologies such as USB4 (80Gbps), DisplayPort 2.1 (80Gbps) and even GPMI (196Gbps) are already pushing the envelope, so HDMI must evolve to stay relevant. The transition will simply take time—current projections suggest that HDMI 2.2 will not begin to see mainstream adoption until late 2026 or early 2027. Early adopters will face steep costs and technical hurdles, much like the slow transition from 4K to 8K. The limited benefits of 8K compared to enhanced 4K (with improved color depth and refresh rates) illustrate how resolution alone does not dictate AV quality. So, we encourage the industry to keep this in perspective.

Preparing for HDMI 2.2

While this advancement promises revolutionary changes for AV manufacturers and integrators, increased bandwidth also presents substantial challenges. This includes potential interoperability issues, the need for higher processing power and increased power consumption for AV devices. More importantly, integrators will need to assess if their customers will truly benefit from HDMI 2.2. Much like the transition from 1080p to 4K and currently from 4K to 8K, there will be limited compatible content for some time. For integrators, the best course of action for now is to wait and watch. HDMI cables are designed to support all current available features, but without a confirmed feature set, manufacturers and integrators are left to risk and navigate uncharted territory.
Given the uncertainties surrounding HDMI 2.2, we suggest that integrators:
  • Avoid overpromising: HDMI 2.2 is not fully defined yet and there are no certified products available.
  • Plan for access and redundancy: Install additional Cat6A and dark fibre to future-ready AV installations.
  • Prioritize reliability over resolution: Many 1080p and 4K installations continue to deliver outstanding results, particularly in non-critical viewing environments.
  • Stay informed: Keep track of HDMI’s announcements regarding testing and certification timelines.
Regardless of the timeline, keep in mind HDMI 2.2 will present opportunities for all professional integrators.
