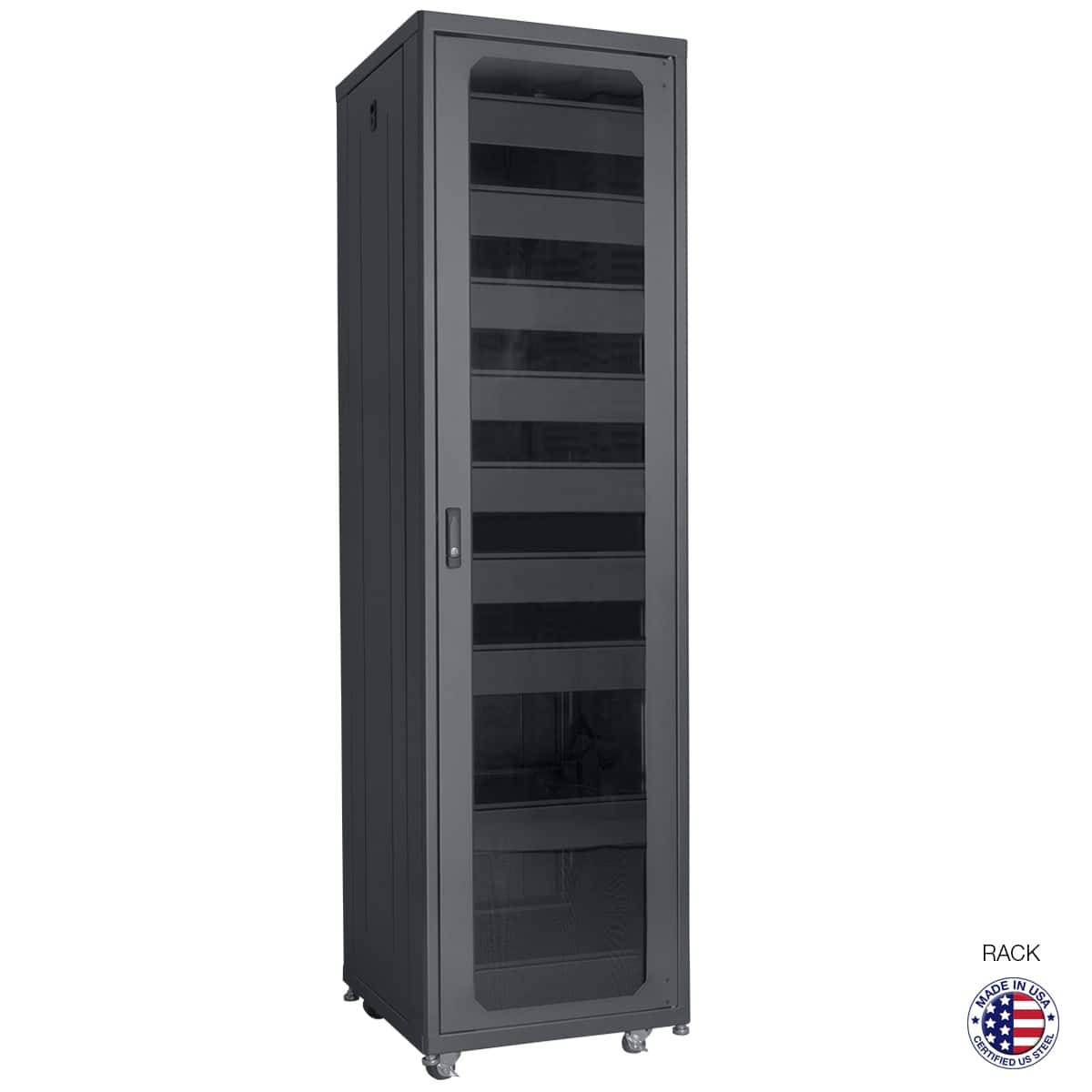

Lowell LCDR Series AV Rack Series

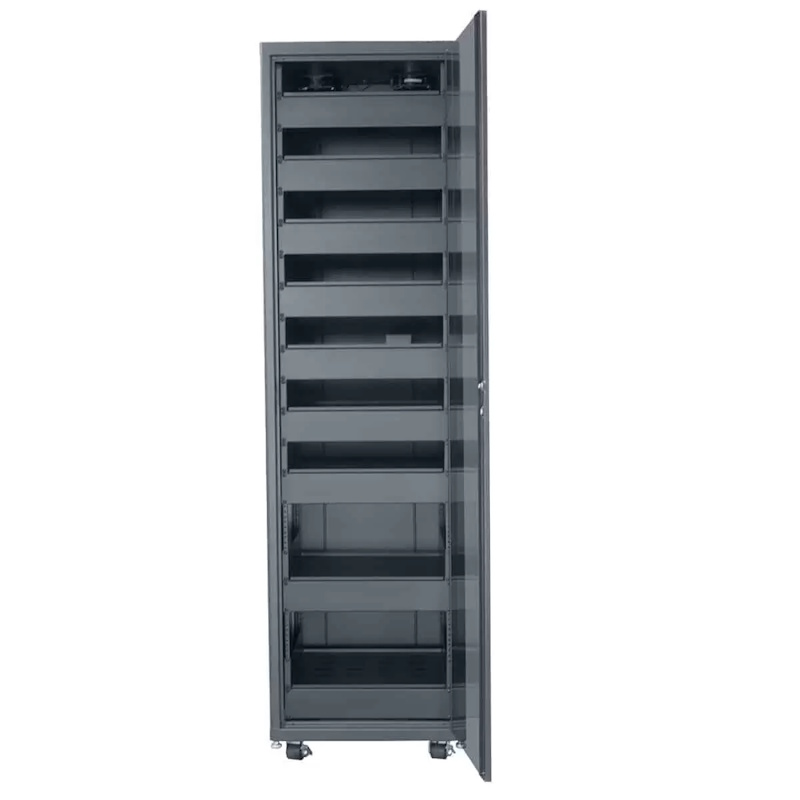

An elegant design with beveled corners and a textured charcoal grey finish, the LCDR rack includes a tempered glass front door. It’s ideal for the high-end decor of executive boardrooms or home theaters. The rack provides easy access with removable side panels and a removable rear access cover that opens from the top. The rack ships pre-configured with blank panels, fans, shelves and swivel casters.Ā This style rack can also be ordered without the installed accessories (LDR Series).
Features
- Solid top with vents and cable entry port(s)
- Base with open center and cable entry ports
- Removable side access covers with key locks (opens from top)
- Rear access cover with key lock (opens from top)
- Tempered glass front door with key lock
- Two-pair fully adjustableĀ rails tapped 10-32 (printed RU scale)
- Pilot Point screws with captive washers
- Grounding stud
- Beveled corners
- Charcoal Grey texturedĀ powder epoxy finish
- Swivel casters
- Leg levelers
- Vented shelves (9)
- Blank panels (9)
- Whisper fans in top vents (2)
Specifications
- ā¢ Panel Space: 18U, 27U, 35U, or 42U
- ā¢ Overall Height: 35.67″ [906], 51.42″ [1306], 65.43″ [1662], or 77.65″ [1973] ā without casters
- ā¢ Overall Depth: 24.00″ [610] ā¢ Usable Depth: 22.00″ [559]
- ā¢ Overall Width: 22.31″ [567]
- ā¢ Load Capacity: 500-1200 lbs. [226 kg]
Compliance
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA
