Lowell LPTR Pull & Turn AV Rack Series

Lowell LPTR Pull & Turn AV Rack Series

Pull & Turn AV Rack Series

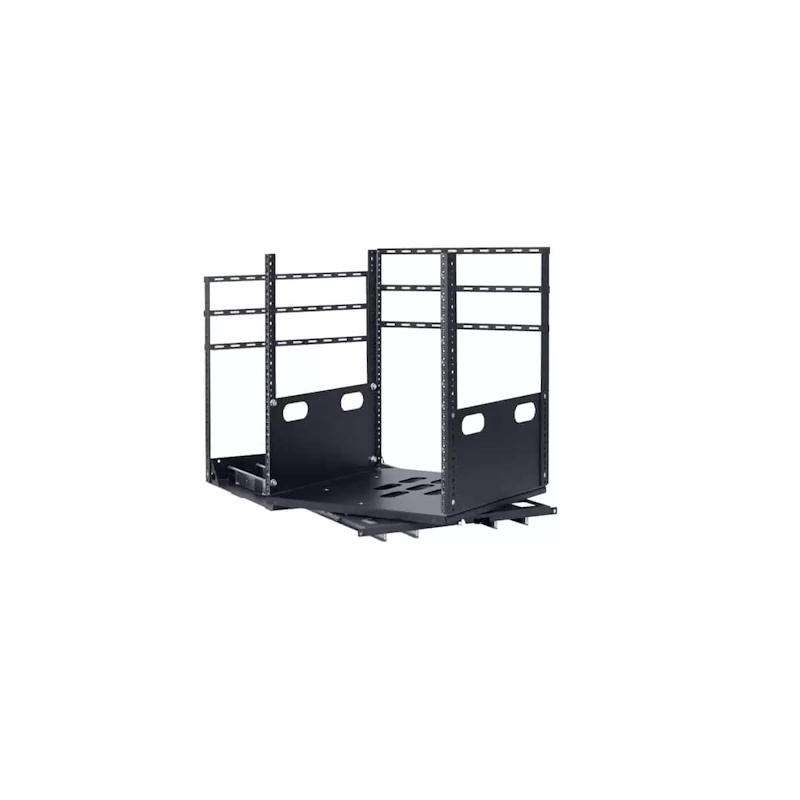

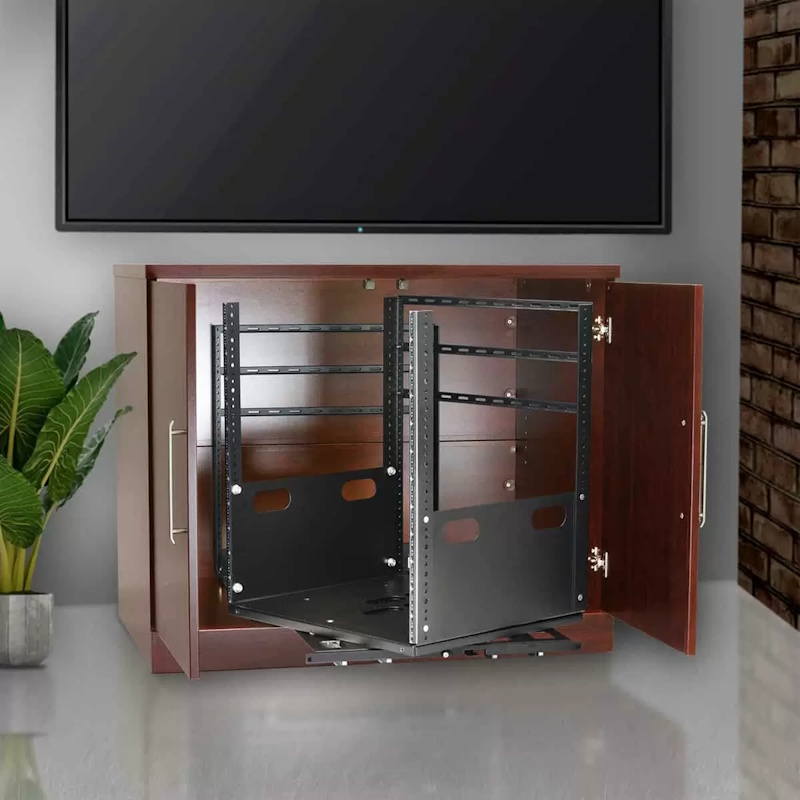

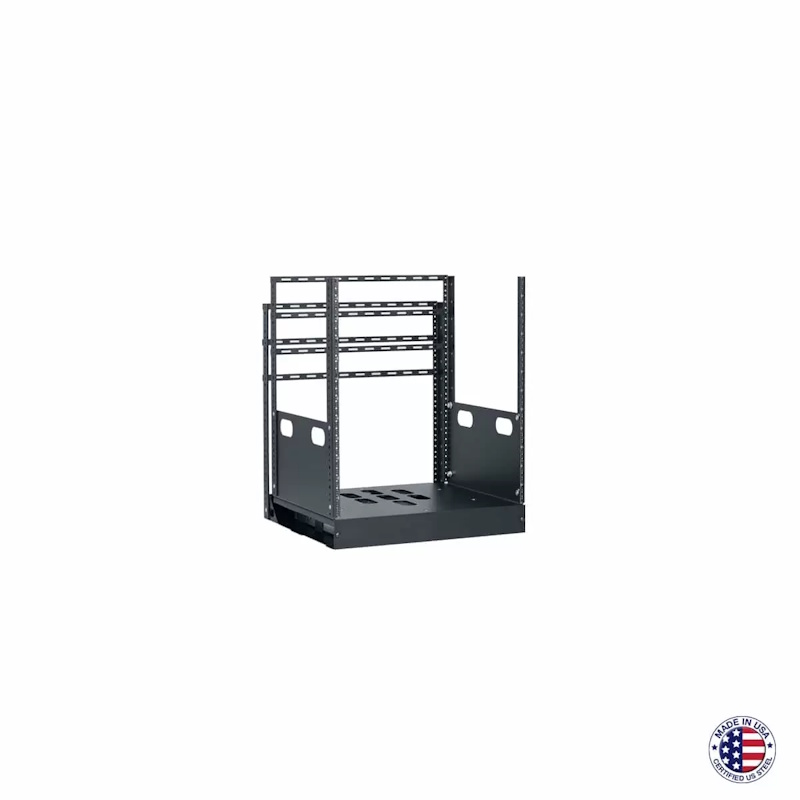

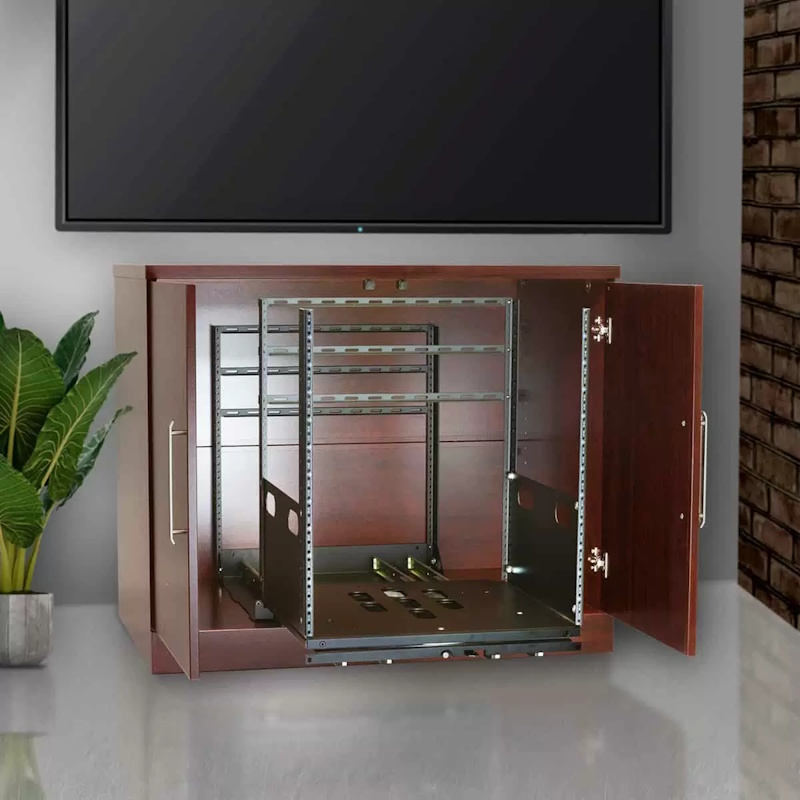

For built-in applications in credenzas, cabinetry or millwork, the top section of the rack slides forward on four (4) support rails set into its base, then rotates left or right and locks at 60 or 90 degrees for superior access to equipment and connections. The rack features four corner post mounting rails and a front securing/finishing panel. Ships unassembled in two cartons.

Available in 24U, 35U, 40U, and 44U

SKU: Lowell LPTR Pull & Turn AV Rack Series

Product Information

Features

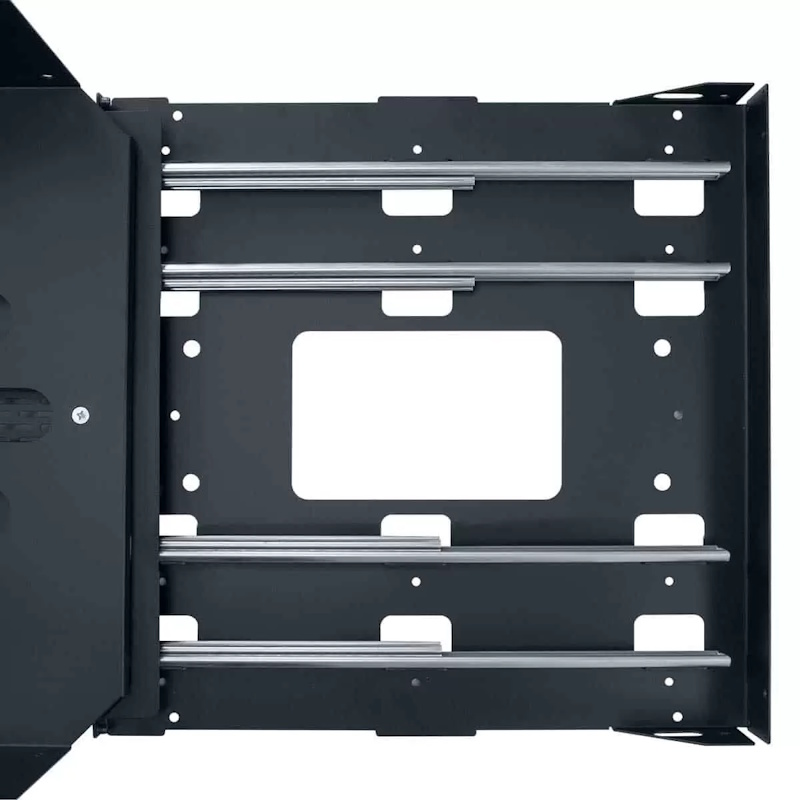

  • Removable base mounts flush or recessed (up to 1.75 in.)
  • Integral turntable with push-button release

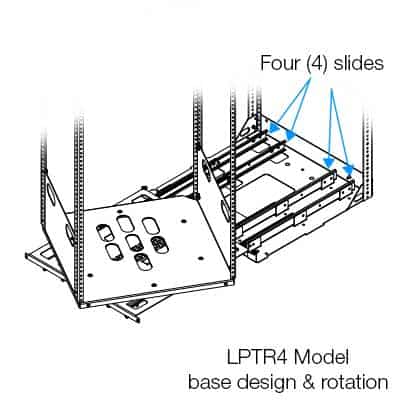

  • Four bottom rail slides (for loads to 200 lbs.)
  • 11-gauge steel corner post mounting rails tapped 10-32
  • Front panel attaches with screws to secure rack in the rolled-back position
  • Six cable lacing bars
  • Smooth-black powder-coat finish

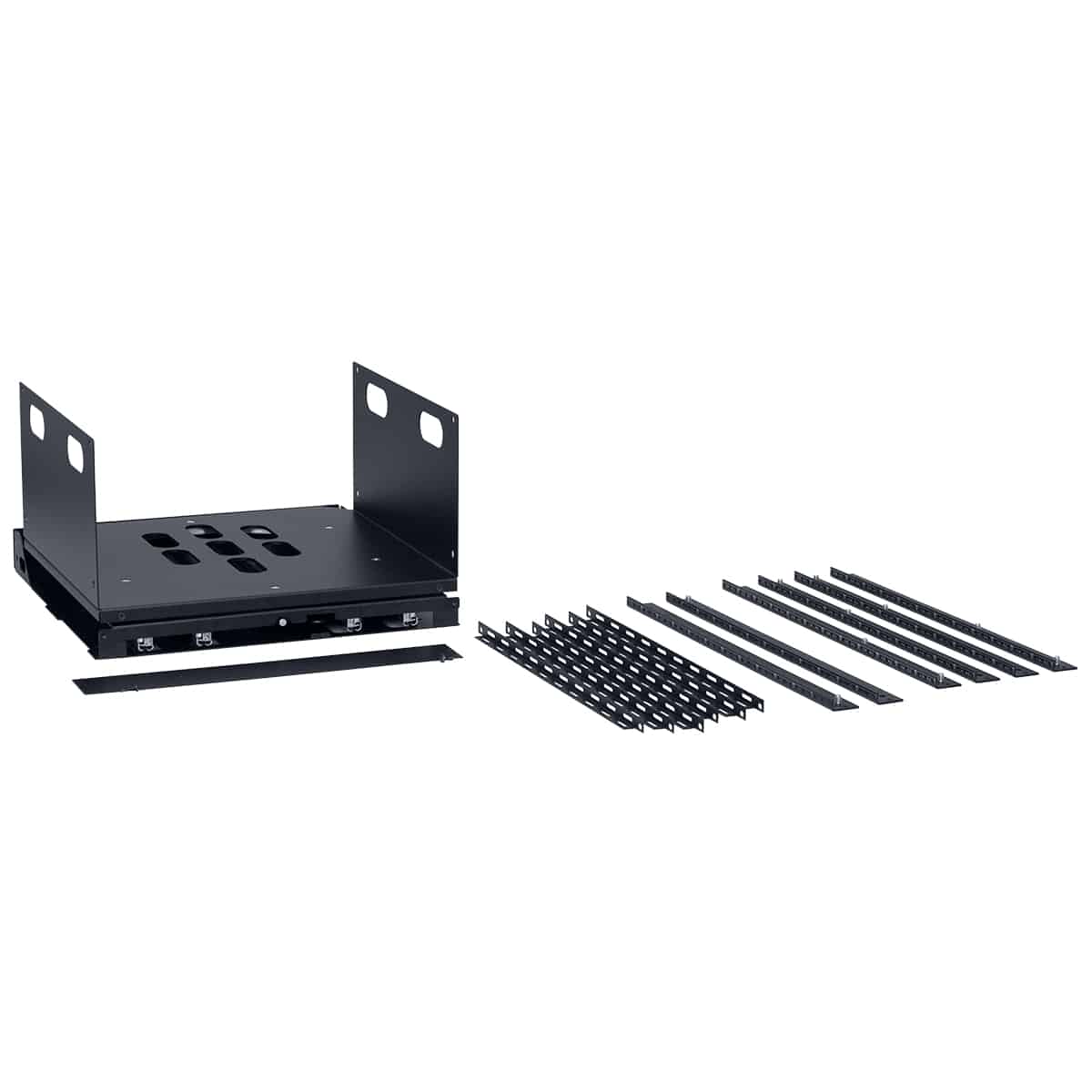

  • Ships unassembled (two cartons)

Additional information

Weight N/A
Dimensions N/A
Rack Height (RU)

12U

Rack Depth

19 inches, 22 inches
