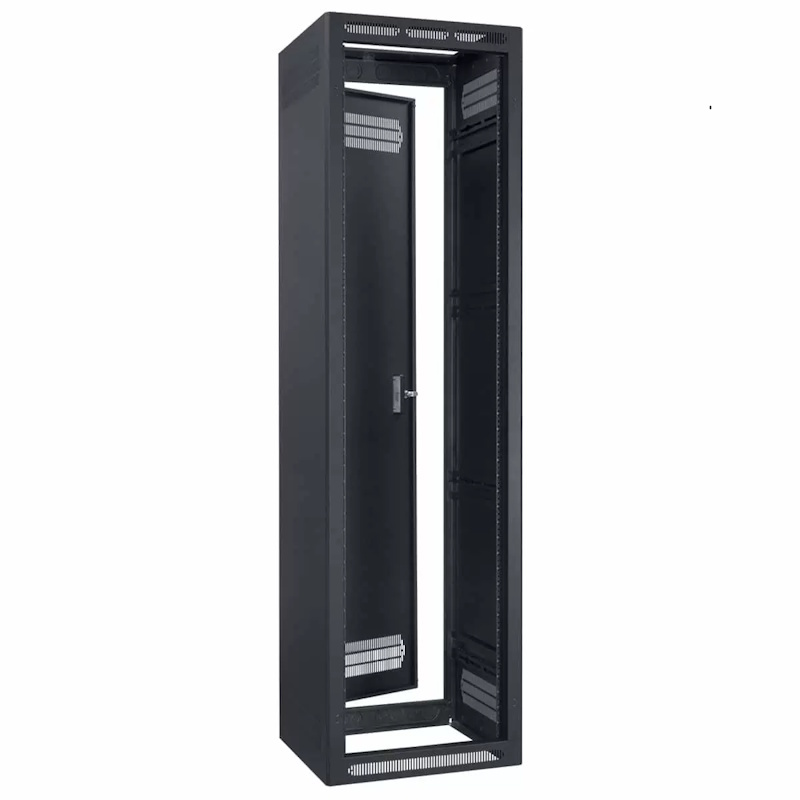

Lowell LGR Series AV Rack Series
The fully-welded open-frame AV rack has a 14-gauge steel base reinforced at load-bearing junctions for robust support. The rack has a configurable top opening that can be closed with optional 19-inch fan panels for active cooling, and recessed rear door with keyed lock. The gangable rack features a 23-inch wide footprint and black-textured powder-coat finish. OptionalĀ front doorĀ andĀ side panelsĀ (order separately).
Features
- Configurable top with 7U opening for 19 in. panels
- Welded sides with vents
- Open front (optional door)

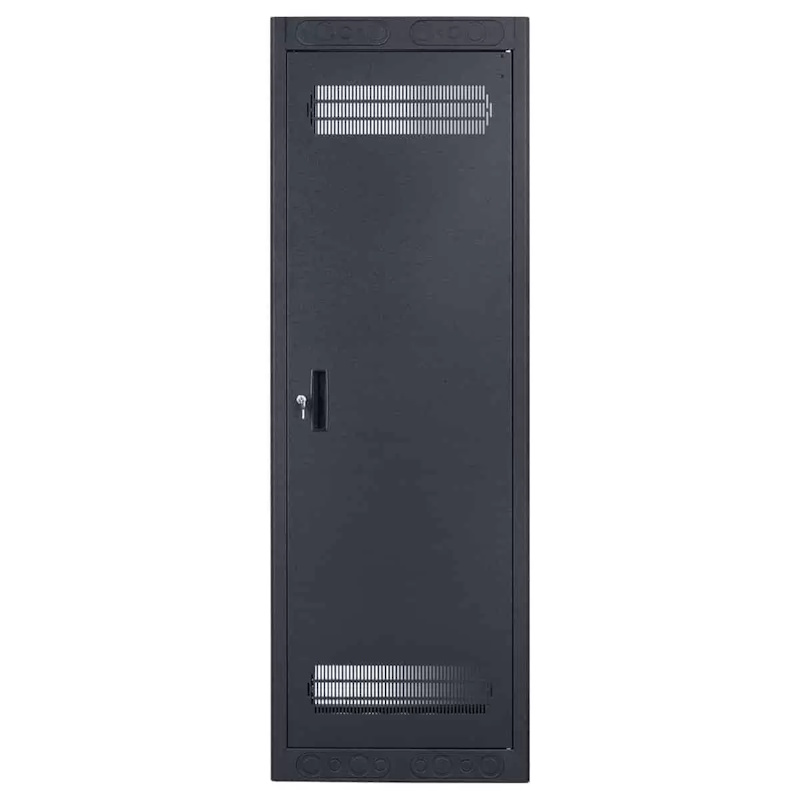

- Recessed rear door with keyed lock
- One-pair fully adjustable rails tapped 10-32
- Multiple lacing points, laser-cut knockout panels
- Pilot point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black-textured powder-coat finish
Specifications
- Panel Space:Ā 18, 21, 24, 35, 40, and 44U
- Overall Depth:Ā 42″ [1067], 36″ [914], 32″ [813], 27″ [686], and 22″ [559]
- Overall Width:Ā 23.06″ [586]
- Load Capacity:Ā 500 – 3150 lbs. [227 – 1429 kg] ā UL Listed
Compliance
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- UL 2416 Listed
- USA-certified steel
- Made in USA
