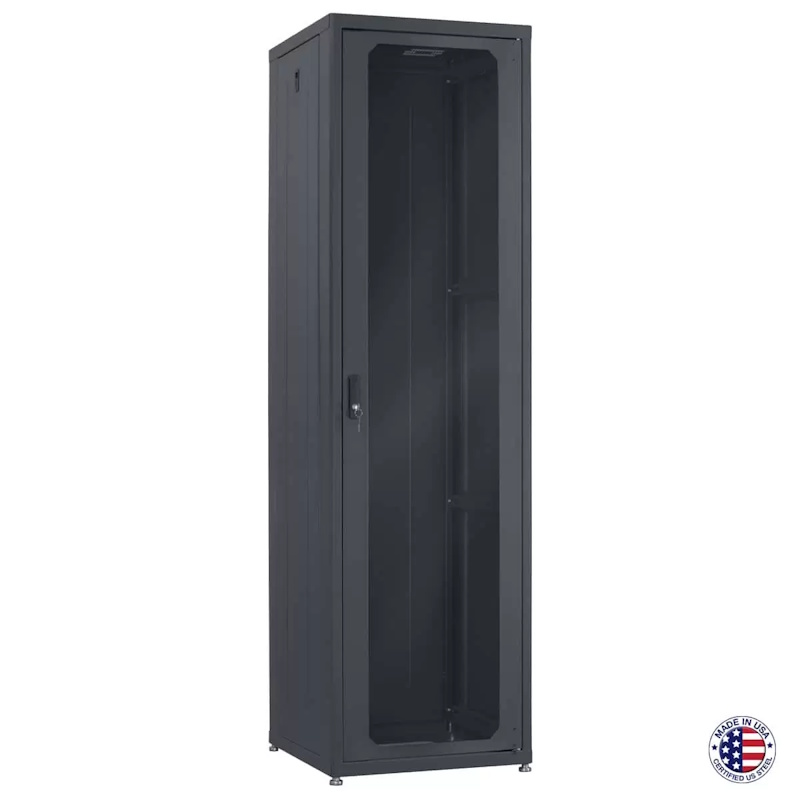

Lowell LDR AV Rack Series

Lowell LDR AV Rack Series

Designer Series AV Rack with Tempered Glass Door

An elegant equipment rack designed to fit with the high-end decor of executive boardrooms or home theaters, the LDR rack features a charcoal grey textured finish and a tempered glass front door. Equipment is easy to access with removable side panels and a removable rear door that opens from the top. To save set-up time, this rack can also be ordered in a pre-configured version with fans, shelves, blank panels and swivel casters for maneuvering; see the Lowell LCDR Series

Available in 18U, 27U, 35U, and 42U

SKU: Lowell LDR Series AV Rack Series

Product Information

Features

CONSTRUCTION: Welded steel frame with removable side panels, rear access cover, and tempered glass door. 16-gauge USA-certified steel with top and baes reinforced at loadbearing junctions. Textured Charcoal Grey powder-coat finish. Beveled edge corners.

FRONT: Includes a clear tempered glass door with inset handle and key lock. Mounts left or right.

REAR: Removable rear access cover with key lock opens from the top. Rear cover is keyed the same as side panels.

SIDES: Removable side panels with key locks are keyed the same as rear door.

BASE: Large 12″ x 12″ opening in center of base, plus two holes with grommets for cable access. Includes 10-32 threaded grounding stud and four leg levelers.

TOP: Steel top features two vents and a three holes with grommets for cable access.

RACK RAILS: Two-pairs of 11-gauge steel, 10-32 threaded rails with rack unit increments printed on EIA spacing. Fully adjustable.

HARDWARE: Black pilot point screws with captive washers for quick installation.

COMPLIANCE: EIA/TIA compliant. TAA compliant, BAA compliant

ORIGIN: Made in USA

Additional information

Weight N/A
Dimensions N/A
Rack Height (RU)

18U, 27U, 35U, 42U

Rack Depth

24 inches
