Lowell LGR Series AV Rack Series

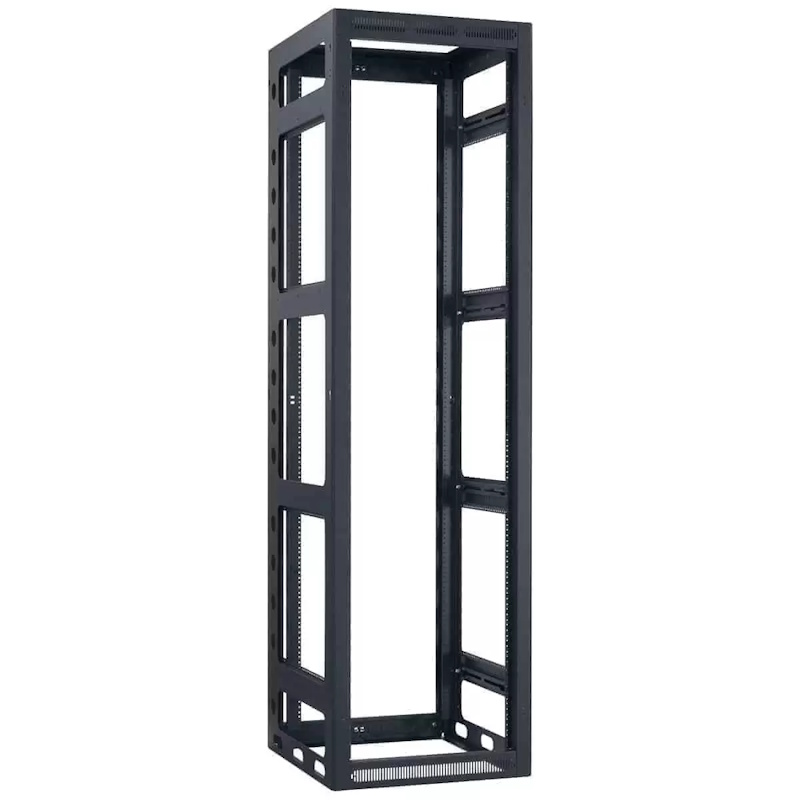

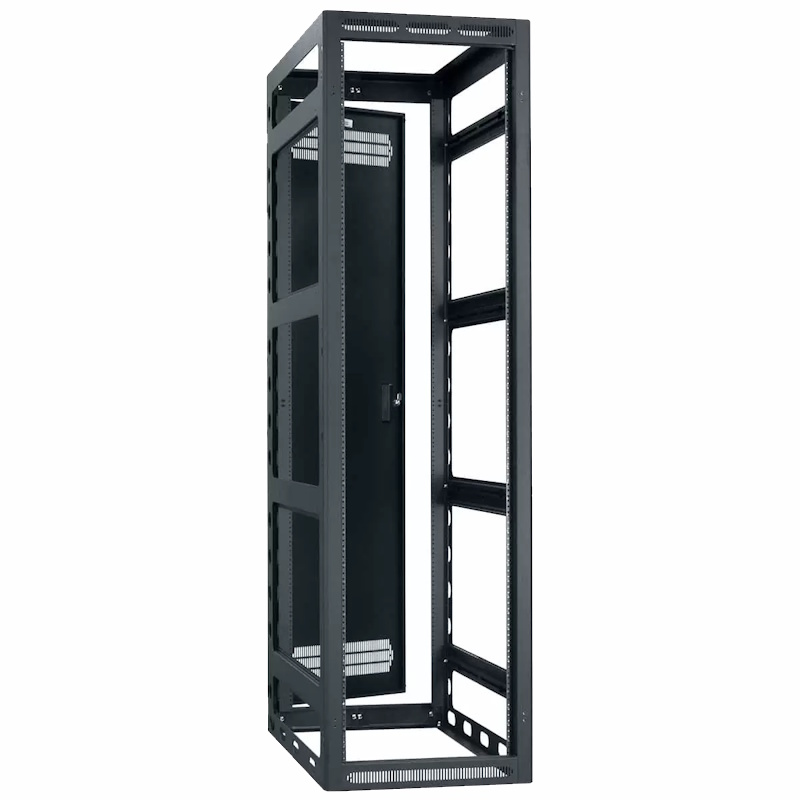

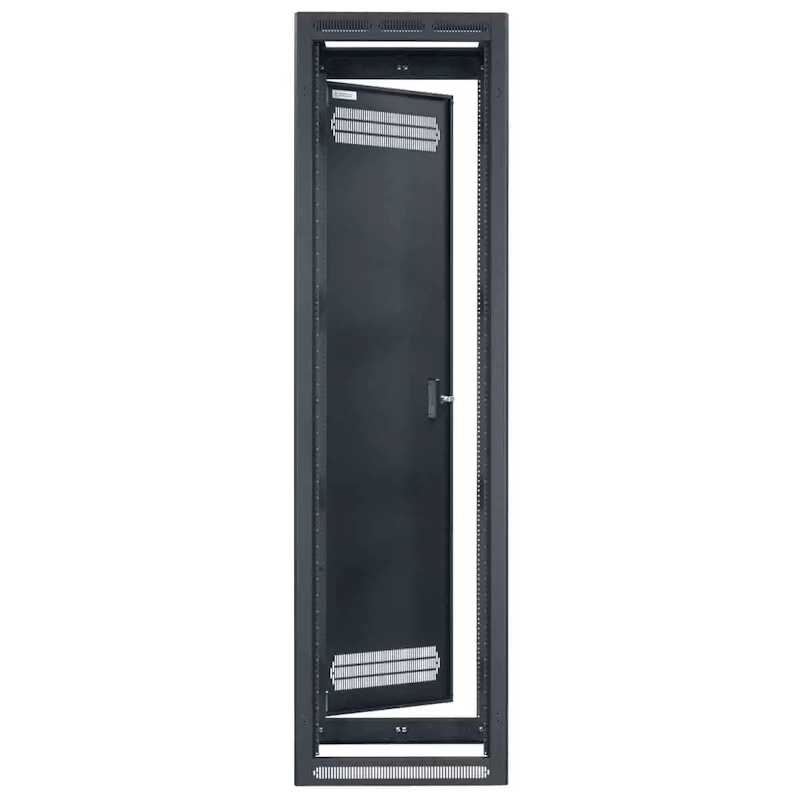

The fully-welded open-frame AV rack has a 14-gauge steel base reinforced at load-bearing junctions for robust support. The rack has a configurable top opening that can be closed with optional 19-inch fan panels for active cooling, and recessed rear door with keyed lock. The gangable rack features a 23-inch wide footprint and black-textured powder-coat finish. Optional front door and side panels (order separately).
Features
- Configurable top has 12U opening for 19 in. panels

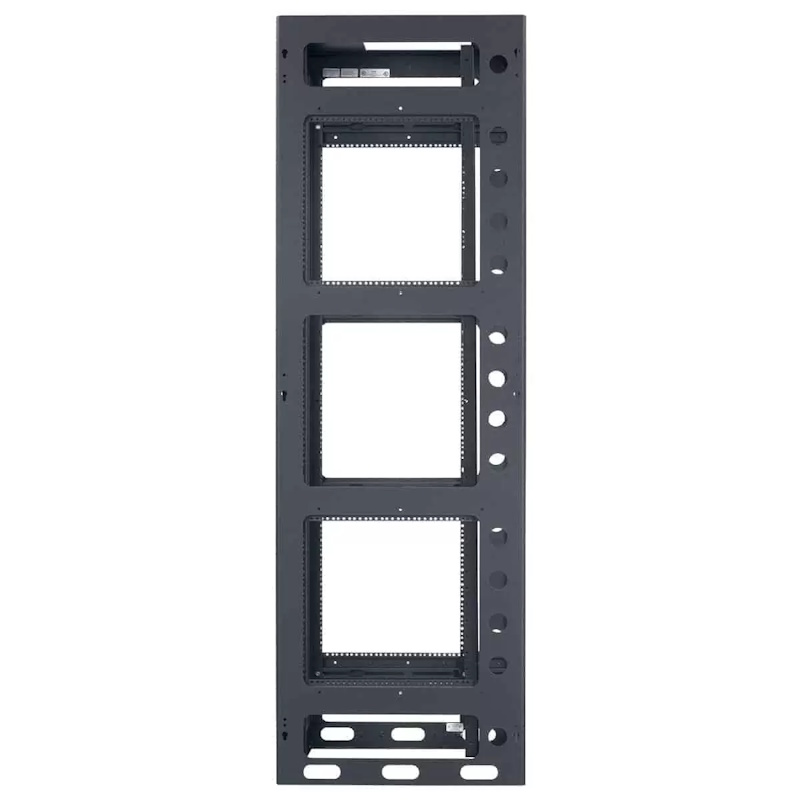

- Open frame with multiple 2 in. holes on sides for cable runs between racks
- Open front (optional door)

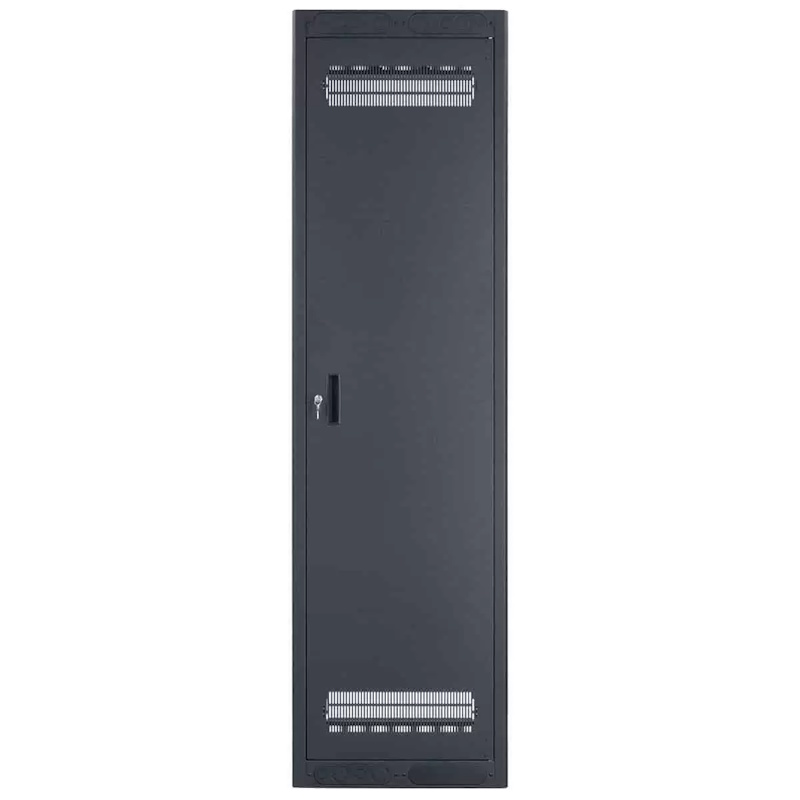

- Rear door with top/bottom vents and key lock
- Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
- Cable Management: Multiple lacing points, holes, knockout panels
- Pilot point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black-textured powder-coat finish
Specifications
- Panel Space: 24, 35, 40, and 44U
- Overall Depth: 42″ [1067], 36″ [914], 32″ [813], 27″ [686], and 22″ [559]
- Overall Width: 23.06″ [586]
- Load Capacity: 3150 lbs. [1429 kg] — UL Listed
Compliance
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- UL 2416 Listed
- USA-certified steel
- Made in USA
